Frames Type M

Easy assembly

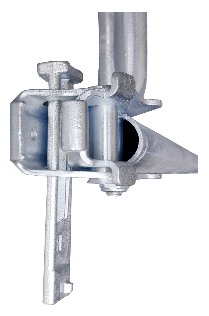

The prop frame can be easily and safely attached using vertically adjustable clamping wedges.

When locked, the clamping wedges hold the frames immovably in their freely selectable vertical position on the props.

In this way, locking and unlocking the prop frames is both easy and safe.

Can be used for different props

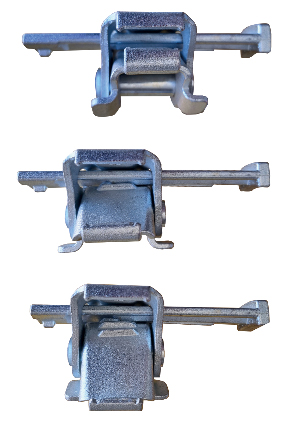

The frame can be used for different props at the same time by changing the position of the locking element. A total of 3 positions are possible.

Offer enquiry Frames Type M

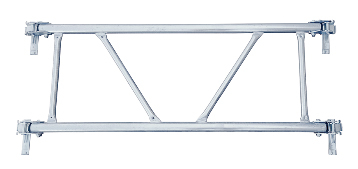

Type M frames

• Aluminium

Item no. Length Height Weight piece
84-T-220062 62 cm 50 cm 1,7 kg
84-T-220075 75 cm 50 cm 2,0 kg
84-T-220090 90 cm 50 cm 2,8 kg
84-T-220120 120 cm 50 cm 3,9 kg
84-T-220137 137 cm 50 cm 4,5 kg
84-T-220150 150 cm 50 cm 4,9 kg
84-T-220201 201 cm 50 cm 6,8 kg
84-T-220225 225 cm 50 cm 7,7 kg
84-T-220230 230 cm 50 cm 7,9 kg
84-T-220237 237 cm 50 cm 8,1 kg
84-T-220266 266 cm 50 cm 9,2 kg
84-T-220296 296 cm 50 cm 10,2 kg
Type M frames Tobler Scaffolding & Formwork Private Limited

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
