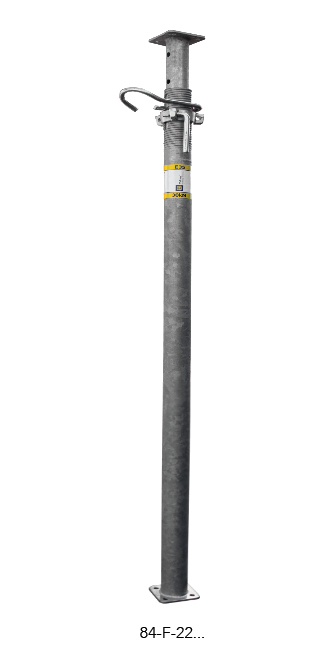

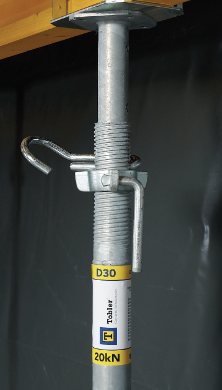

The Tobler Flex prop

The fully galvanised prop with forged and robust threaded nut guarantees a long service life. The 6° thread accelerates working speed by 35 %.

The Tobler Flex prop meets load classes D and E according to EN 1065. It stands out by its low net weight with a high load capacity of up to 41 kN.

Benefits

  • Load capacity table reproduced for each prop

  • Safe working thanks to anti-handtrap and anti-dropout protection
  • Long service life due to complete hot-dip galvanisation
  • Extremely robust due to forged nut and 8 mm head and foot plate
  • Fast-running 6° thread saves 35 % time
  • Load capacity 20 kN / 30 kN
  • Low net weight for energy-saving and fast working



.



Offer enquiry Props

Class D and E props

• Hot-dip galvanised steel

Item no. Designation Length Weight PU Load capacity piece
84-F-221250 D 25 Eco 146 – 250 cm 13,0 kg 50 pces 20 kN
84-F-221300 D 30 Eco 182 – 300 cm 15,9 kg 50 pces 20 kN
84-F-221350 D 35 Eco 207 – 350 cm 17,6 kg 40 pces 20 kN
84-F-221400 D 40 225 – 400 cm 22,1 kg 40 pces 20 kN
84-F-221450 D 45 250 – 450 cm 27,5 kg 40 pces 20 kN
84-F-221550 D 55 303 – 550 cm 35,0 kg 30 pces 20 kN
84-F-223300 E 30 175 – 300 cm 17,5 kg 40 pces 30 kN
84-F-223350 E 35 198 – 350 cm 23,8 kg 40 pces 30 kN
84-F-223400 E 40 225 – 400 cm 26,0 kg 40 pces 30 kN
Class D and E props Tobler Scaffolding & Formwork Private Limited

4-way head

• Hot-dip galvanised steel

Item no. Designation Weight piece
84-F-210026 with 26 mm tube 2,4 kg
84-F-210038 with 38 mm tube 2,4 kg
4-way head Tobler Scaffolding & Formwork Private Limited

Tripod

• Hot-dip galvanised steel

Item no. Weight piece
84-F210012 8,5 kg
Tripod Tobler Scaffolding & Formwork Private Limited

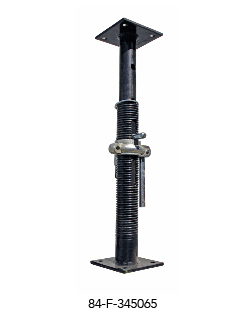

Trench strut

Hot-dip galvanised version on request

• Powder-coated, black
• Packaging unit: 50 pieces

Item no. Height Weight piece
84-F-345065 0,45 – 0,65 m 7,5 kg
84-F-360095 0,60 – 0,95 m 9,0 kg
84-F-380130 0,80 – 1,30 m 10,0 kg
84-F-300170 1,00 – 1,70 m 14,0 kg
Trench strut Tobler Scaffolding & Formwork Private Limited

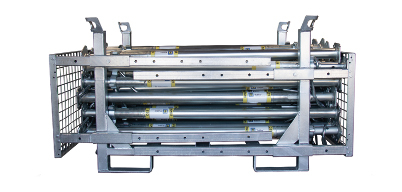

Storage racks for props

Item no. Length Width Height Weight Payload piece
84-F-210080 120 cm 80 cm 70 cm 56,6 kg 2ʼ000 kg
Storage racks for props Tobler Scaffolding & Formwork Private Limited

Storage rack for props with anti-fall protection

Item no. Length Width Weight Load-bearing capacity Additional load piece
84-F-212080 160 – 310 cm 80 cm 93 kg 1ʼ500 kg 4ʼ500 kg
Storage rack for props with anti-fall protection Tobler Scaffolding & Formwork Private Limited

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.

Customer’s details

Downloads

Tobler  Flex Props,  Beams, Panels Catalogue
